Specification

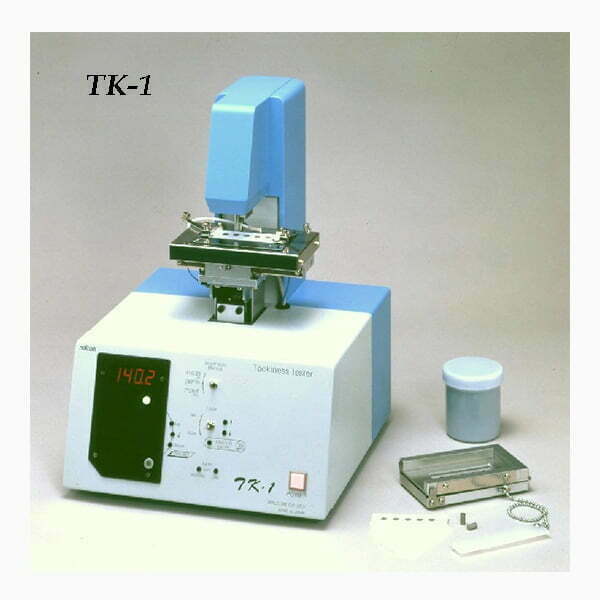

| Model | TK-1S |
| Load Sensor | Range : 0~400gf±2gf Resolution : 0.25gf |
| Measurement Methods | (1) Continuous preload, JIS (2) Insertion depth (3) Point preload, IPC |
| Parameters Measured | (1) Tackiness : T gf (2) Real Preload : P gf (3) Real Insert depth : D μm |
| Preset Ranges | (1) Preload : -20 ~ -400gf (2) Time : 0.1 ~ 99.9s (3) Speed : 1.0 ~ 10.0mm/s (Continuous preload / Insertion depth) 2.0 ~ 600.0mm/min (Point preload) (4) Depth : 20 - 200μm (5) Temperature : Room temp. +10℃ - 250℃ |
| Digital Output | RS232C |
| Weight | 約10kg |
