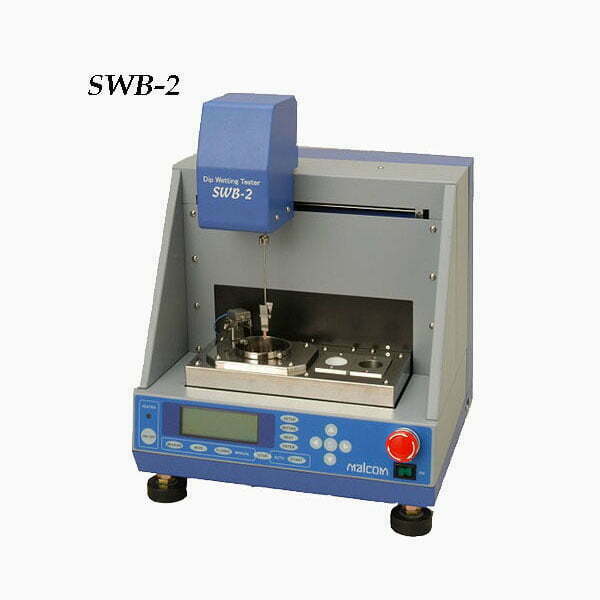

Dip Wetting Tester SWB-2

Brand：日本MALCOM
The entire procedure, from Flux application (w/ Flux Temperature Control Function) to Measurement End is automated. Reducing unstable measurement results, and user error.
Complies with the Wetting test method according to JIS Z3198 (Lead Free Solder Test Method) standards.
Easily change Solder and Flux when necessary.
Electro-Balance Sensor detects a small force.
Efficiently analyze data with the exclusive PC software. (option)
An optional cover allows for wetting evaluation in a N2 environment. (option)
Micro Wetting Balance Measuring method is available. (option)

Specification

Model	SWB-2
荷重傳感器	Electro-Balance Sensor (EBS) 測定範圍30mN~-30Mn　精度±0.05mN　分辨率0.01mN
Temperature Sensor	測定範圍0~450℃　精度±3℃
Insertion Time	1~200s
Insertion Depth	0.01~20.00mm
Insertion Speed	0.1~30mm/s
Solder Temp. Setting	Room Temp. - 400C (Micro-wetting : Room Temp. - 320C)
International Standard	ISO 9455-16 IEC　60068-2-54、60068-2-69 ANSI　J-STD-003、MIL-STD-883（METHOD 2022.2）及 IPC-TM-650（2.4.14.2）
N₂Measurement	Oxygen Concentration : 500ppm max. (optional)
Power Supply	AC100,115,220,240V (To be specifired when ordering) Approx 400W
Dimension	W300 × D330 × H370 mm
Weight	16kg
