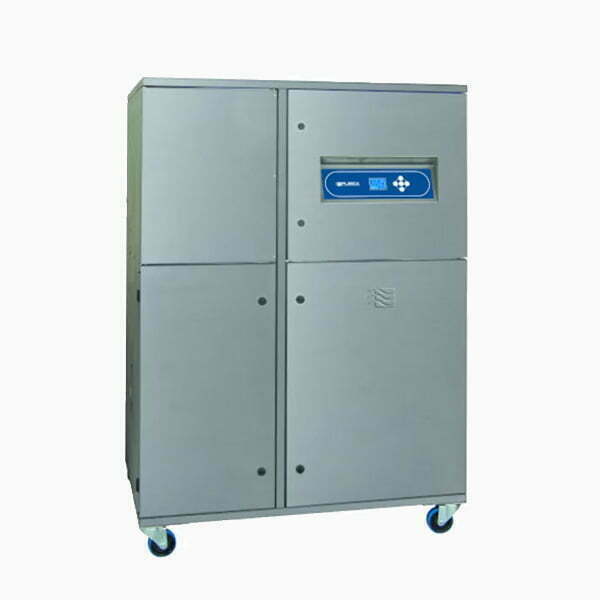

Fume Extraction System 5000i

  • Brand:PUREX
  • Automatic electronic flow control – maintains a constant extraction rate even if the filter blocks
  • Adjustable airflow
  • Clear and informative graphic display
  • Gas and particle sensors on the exhaust
  • Quick change patented Labyrinth pre-filters that deliver a longer filter life
  • Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
  • Activated carbon filtration removes harmful gas
  • Simple to install and quiet in operation, easy to relocate
  • Precision made from stainless steel
  • High performance brushless motors
  • Remote interface capability

Specification

Volume Model0LX5551D / 0LX5565D0LX5550D / 0LX5549D
Vacuum Model044251D / 044265D044250D / 044261D
Voltage220V400V
Power7.5kW7.5kW
Frequency50/60Hz50/60Hz
DimensionH1804×W1250×D892mmH1804×W1250×D892mm
Weight400kg400kg
Sound level65dB65dB
Airflow5000m3/hr5000m3/hr

Comparison

ModelAirflowVoltageVolumeVacuum
200i200m3/hr120V0LX2121D081026iD
230V0LX2110D080026iD
400i400m3/hr120V0LX4013D080411iD
230V0LX4010D080410iD
1500i1500m3/hr120V0LX1511D021821iD
230V0LX1510D021820iD
2000i2000m3/hr120V0LX2011D022121iD
230V0LX2010D022120iD
5000i5000m3/hr220V0LX5551D
0LX5565D
044251D
044265D
400V0LX5550D
0LX5549D
044250D
044261D

Option

ItemDescription
110633主濾網 HEPA
110627主濾網 Chemical
110624主濾網 Chemical (Option)
111006副濾網 F8/F9 Labyrinth (Side Inlet Only)
111144副濾網 F8/F9 Labyrinth (Rear Inlet Only)
200044副濾網 F8/F9 Labyrinth (Option)
120296連接套件 200mm Hose kit (Option)
