Green White Multi-Wavelength Inspection Lamp FT-8906-GW

SKU: FT-8906-GW Category: Tags: ,

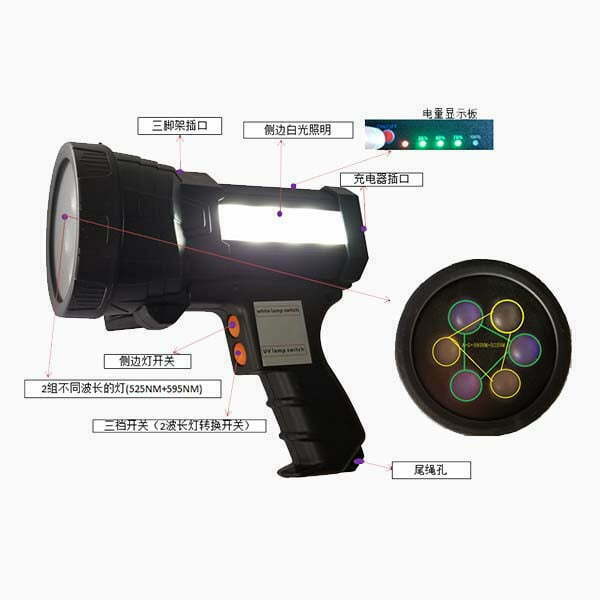

  • Multi-function inspection lamp is 2 different wavelength combinations, side lighting function as well.
  • 1 switch for side light, and the other controls the inspection lamp.
  • Ideal inspection lamp with 2 wavelength combination can fully test the defect and flaws on surface.
  • Detect minimal 10um scratch or dust.
  • Mechanical cooling. Provide stable and high illuminance special wavelength light source.
  • 使用2種電源:可以使用交流100-240AC/50H充電器,可以連續24小時使用;使用直流聚合物電池組,方便攜帶和移動。
  • We can customize the different inspection lamps according to customer demand, with our optical lens technology.

Specification

ModelFT-8906-GW
LED Spec3個525NM 和 3個6000K LED 綠光+白光
Side Light6 pcs white light LED
Luminance
(測試距離30cm)
40000LX-525nm
39000LX-525nm
Irradiated Area200mm光圈-525nm
186mm光圈-595nm
Switch Mode1 switch for side light, and the other controls the inspection lamp
Lifespan30,000 hours
PowerLithium battery, 4H running time for inspection lamp. Side light exceeds 10H.
Size and Weight材料:ABS+鋁合金材料,尺寸:180×190×106mm,淨重:0.68kg
OptionalTripod, Protective glasses

Comparison

ModelTypePeak-WavelengthNumber of LEDs
FT-6300-H手電筒365nm UV light1個5W
FT-8300-H手電筒365nm UV light1個5W
FT-8300-G手電筒525NM green light1個5W
FT-8904-H手持式/可加腳架365nm UV light4個5W
FT-8904-G手持式/可加腳架525NM green light4個5W
FT-8804-H桌面式/桌夾式365nm UV light4個5W
FT-8804-G桌面式/桌夾式525NM green light4個5W
FT-8108-H大面積懸掛式365nm UV light8個5W
FT-8108-G大面積懸掛式525NM green light8個5W
FT-8208-H燈管懸掛式365nm UV light8個5W
FT-8208-G燈管懸掛式525NM green light8個5W
FT-8806-GY桌面式525nm綠光 + 595nm黃光6個5W
FT-8806-GW桌面式525nm綠光 + 6000K白光6個5W
FT-8906-GY手持式/可加腳架525nm綠光 + 595nm黃光6個5W
FT-8906-GW手持式/可加腳架525nm綠光 + 6000K白光6個5W
FT-8500-GY桌面式510-590NM green yellow light1個20W
FT-8500-W桌面式6000K white light1個20W
FT-8600-GY手持式/桌面式510-590NM green yellow light1個20W
FT-8600-W手持式/桌面式6000K white light1個20W
FT-8900-GY手持式/桌面式510-590NM green yellow light1個30W
FT-8900-W手持式/桌面式6000K white light1個30W
FT-6300S-H小型檯燈式365nm UV light1個10W
FT-6300S-G小型檯燈式525NM green light1個10W
FT-6300S-W小型檯燈式6000K white light1個10W
