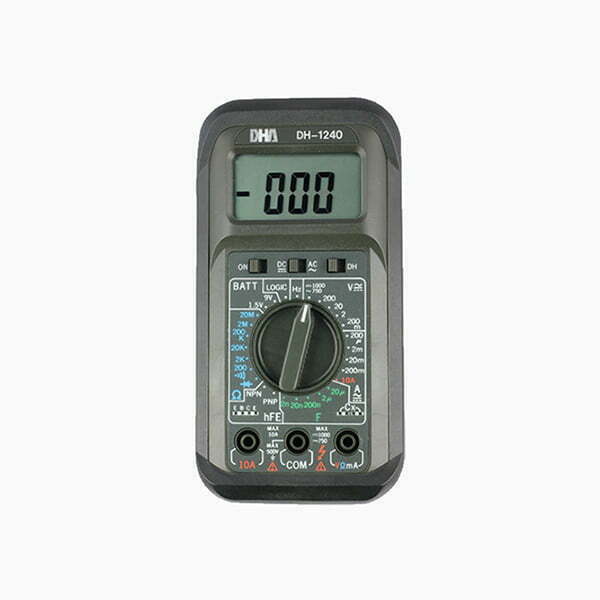

Digital Multimeter DH-1240

SKU: DH-1240 Category: Tags: ,
  • Logic Test / Battery Test
  • 3 1/2 Digits LCD Display 2000 Counts
  • ACV / DCV
  • ACA / DCA
  • Resistance / Capacitance / Frequency
  • Data Hold
  • Continuity Test
  • Low battery indication
  • Shockproof Drop Resistant

Specification

ModelDH-1240AccuracyResolution
DC Voltage Range200m/2/20/200/1000 V±0.8%0.1mV
AC Voltage Range200m/2/20/200/750 V±1.2%0.1mV
Resistance Range200/2K/20K/200K/2M/20M Ω±1%0.1Ω
Capacitance2n/20n/200n/2μ/20μ F±3%1pF
Frequency2K/20K/200K/2M/20M Hz±0.5%1Hz
DC Current Range200μ/2m/20m/200m/10 A±1%0.1μA
AC Current Range200μ/2m/20m/200m/10 A±1.5%0.1μA
Diode測試電流 1 mA
Continuity Test<30Ω
Dimension153×74×45 mm
Weight355 g（含電池）
