Specification

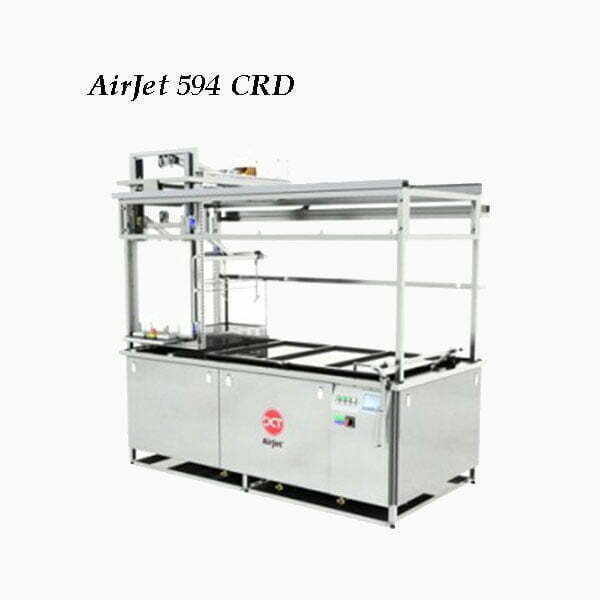

| Model | AirJet 594 CRD |
| Dimension | 2536×1636×2463 mm |
| Weight | 720 kg |
| Dimension with handling trolley | 570×1354×950 mm |
| Weight with handling trolley | 50 kg |
| Ø energy consumption per cycle | 1.65 kWh |
| Cleaning and rinsing fl uid consumption per cycle | 0.05 – 0.3 L |
| Compressed air consumption per cycle | 83 l / 5 Bar |
| Dimensions of carrier basket | 455×855×500 mm |
| Max. dimensions of the cleaned parts | 470×880×600 mm |
| Temperature range setting of the cleaning and rinsing fl uid | From ambient temperature to 60°C |
| Temperature range setting of the drying | From ambient temperature to 80°C |
| Noize Level | <70 dB |
| Device Control | PLC + 5.7“ touchscreen |
| Volume of the storage tanks | 200 L |
| Power Supply | 三相五線400V, 32A, 50Hz |
| Pmax | 9.5 kW |
| Recommended working pressure | 4.5 – 6 Bar |
