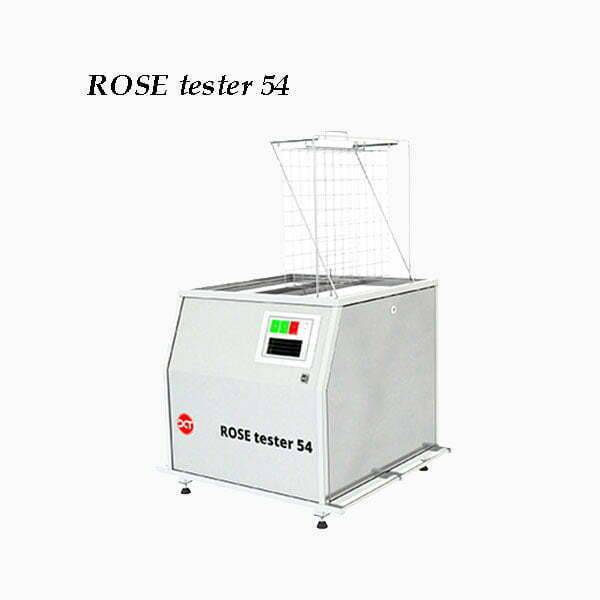

Ionic Contamination Measurement System ROSE Tester 54
- Brand：捷克DCT
- The devices are intended for precise measurement of ionic contamination (contamination of ionic impurities) in the Electrotechnical industry, especially for controlling purity of PCBs and misprints. Due to their precision, Rose Testers can be used for measuring purity in other industries as well.
- Ionic impurities are invisible with bare eye check or under a microscope. This is the reason why the usage of Rose Tester is necessary for revealing such kind of impurities. The result of testing is a value μg NaCI Eq./cm2。
- This particular check of ionic contamination level is usually performed after the cleaning process of PCB, as a quality and sustainability check. The aim of this measurement is to ensure the reliability of the product, which could be harmed by undesirable ionic contamination.
- Measurement systems Rose Tester 32 and Rose Tester 54 are developed and manufactured in accordance with a standard IPC-TM-650, 2.3.25 (Static Extraction Method)
