LED Illuminated Magnifier Without Dimmer SKKL-B

SKU: SKKL-B Category: Tags: , , ,
  • Brand：The SKK-F model is a swing-arm product that can be clamped to a desk. LED circular tube.
  • The SKK-B model is a self-supporting desktop product.
  • 專門為LED設計的超薄燈頭，採用高顯色和高散熱性能。
  • 擴散防護罩可保護工作和光源，同時減少LED的眩光。
  • ON/OFF開關位於頭部，以提高可操作性。
  • 考慮到可操作性，新設計的工作台架具有較大的工作空間，不會干擾工作。
  • 可選配導電墊安裝在桌面支架上以防止變髒，也可通過正確接地，將桌子支架用作簡單的防靜電空間。

Specification

ModelSKKL-B
Magnification Rate2x，3x，4x，6x，8x，10x，12x，15x
AR (anti-reflection) Coated Lens Lineup可用2x，3x，4x，6x，8x，10x
Light SourceHigh Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input Voltage100~240V，50/60Hz
Power Consumption9W
支架高度330mm
頭部直徑Ø230mm
支柱／橫桿直徑Ø16mm／Ø13mm

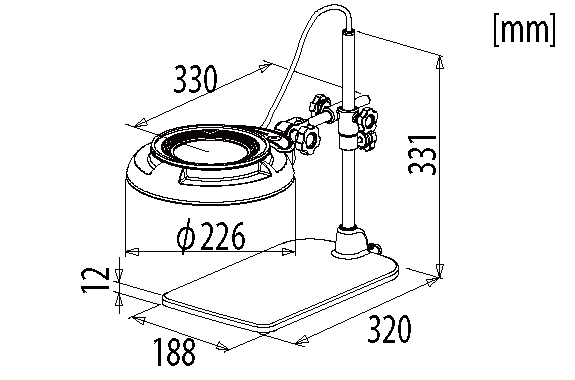

DimensionSKKL B size
Weight2.1kg（不含鏡片）
AC適配器96×44×29mm
Operating Temperature5℃~35℃
Dustproof and waterproof protection gradeIP20 (indoor use only)
