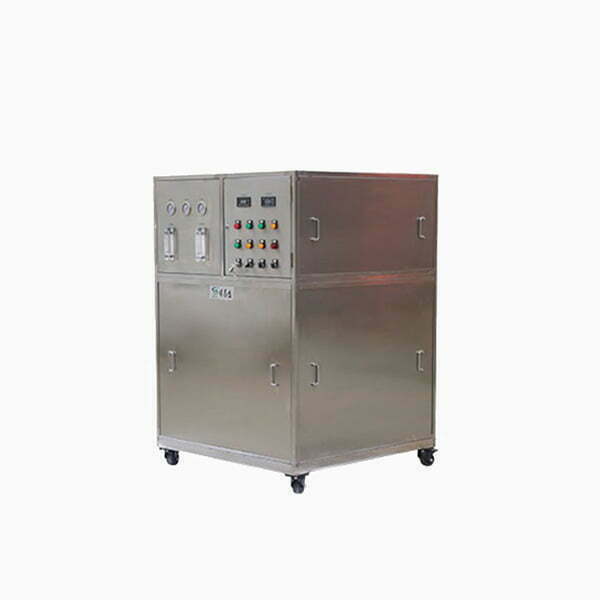

Deionizing Water Machine Equipment PBT-250L

SKU: PBT-250L Category: Tags: , ,
  • With 24 small continuous water production function, the salt removal rate up to 97%.
  • Quick low-pressure rinse at startup to displace residual water in reverse osmosis. These measures are designed to reduce the frequency of chemical cleaning and disinfection and extend the service life of reverse osmosis membranes.
  • Fully automatic operation, once the water supply is insufficient, with shutdown protection function.
  • If the pressure of the reverse osmosis outlet is high, the system will stop for protection. If the pressure of the reverse osmosis inlet is too low, the system will also stop for protection. When the water level of the reverse osmosis tank is full, the system will also stop.
  • The system has low-voltage power off automatic protection function, when the inlet pressure of the high-pressure pump is low,RO high-pressure pump will automatically stop, avoid the damage of the high-pressure pump, and the system sends out a warning (raw water low-voltage light off).
  • RO system with automatic water refill device, when the level of the RO tank reaches the low water level, the system will automatically start, when the level of the RO tank reaches the high water level, the RO system will automatically stop.
  • The system has automatic washing function, with quick low-pressure washing on startup, so as to reduce the pollution speed of the RO membrane system, prolong the cleaning cycle and service life of the RO membrane
  • 可與 PCBA Offline Cleaning Machine PBT-800P 配合使用。

Specification

ModelPBT-250L
High Pressure Pump4HP不鏽鋼多級離心泵
DI Water Rate250L/H
Conductance5US以下
Resistivity10兆歐~16兆歐
External Power SupplyAC380V,50Hz,2.2KW
Filtration System六級多介過濾(沙、炭、樹脂、RO膜等)
Exhaust Port Size1吋
DimensionL1200mm×W1100mm×H1600mm
Net Weight400kg

Instruction
