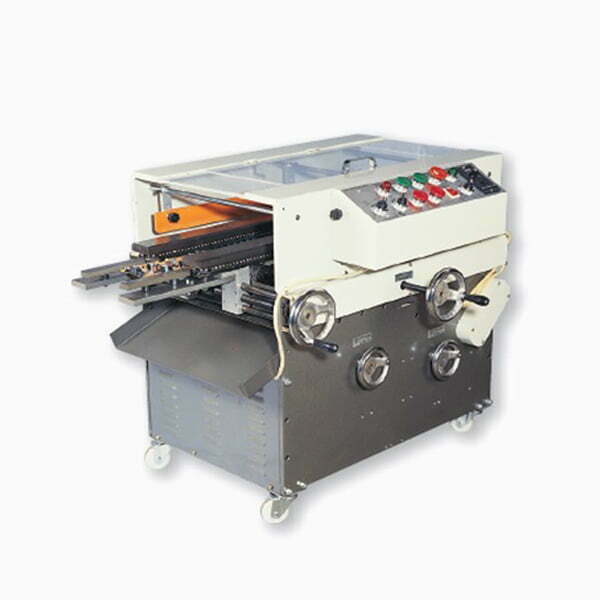

Automatic PCB Brushing and Lead Cutting Machine KA-B6

SKU: KA-B6 Category: Tag:
  • PCB working range: 10~280 mm
  • Brush is suitable to clean and brush away lead residuals after cutting.
  • Available to connect with wave soldering machines in mass production.
  • PCB wrap-proof device is equipped.
  • The heights of inlet and outlet conveyors are adjustable to meet various brands of soldering machines conveyor.
  • 可選配前入料銜接軌道、後出料銜接軌道、台架、銅刷、鎢鋼刀片等。

Specification

ModelKA-B6
Thickness Range0.8~2.5
RPM of Spindle4500 rpm
HP3/4 HP
Feeding Speed0~3M/min adjustable
RPM of Brushing600rpm 1/2HP
Min. Lead Height1.0 mm
PCB Max Size500 × 280 mm
DimensionL1160 × W730 × H800 mm
VoltageAC 220V
Weight200 kg
