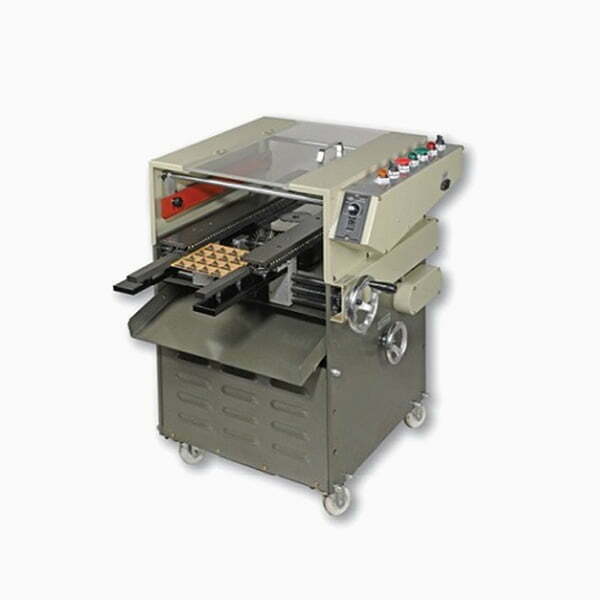

Skip to contentAutomatic PCB Lead Cutter KA-66
- Trim the extra long leads automatically and efficiently on the PCB that components are inserted and soldered.
- A pair of conveyor chains in KA-66 clamps and delivers the PCB to trim lead wire by high-speed turning blade.
- PCB warp prevention device is equipped to ensure no damage and equal cut on boards.
- Linking conveyors are expandable. KA-66 can work independently.
- 鎢鋼刀為選購品，不屬於標準配備。
Specification
| Model | KA-66 |
| Thickness Range | 0.8~2.5 |
| RPM of Spindle | 4500 rpm |
| HP | 3/4 HP |
| Feeding Speed | 0~3M/min adjustable |
| Min. Lead Height | 1.0 mm |
| PCB Max Size | 500 × 280 mm |
| Dimension | L900 × W670 × H800 mm |
| Voltage | AC 220V |
| Weight | 115 kg |
