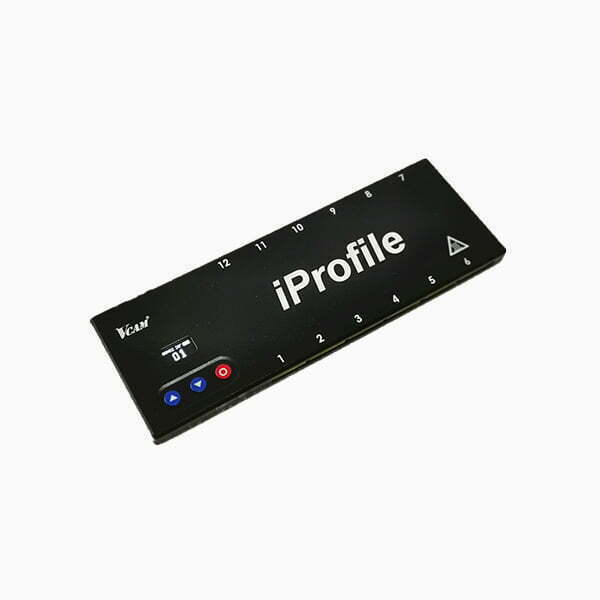

Intelligent Furnace Temperature Tester i6-series

Intelligent furnace temperature tester
The temperature data can be displayed and transmitted downloaded in real time
The line body can be selected for storage, the furnace temperature curve corresponding to the line body can be downloaded
The indicator with software to view the temperature curve can view the temperature data at any point of the temperature curve the corresponding time point
Three trigger modes (time trigger, temperature trigger, custom trigger)
Software administrator rights
Custom process analysis items standard values
Automatic curve analysis
The physical photos that can be inserted into PCB
The slope calculation of any two points of the display curve can be customized, the slope ЕХ can be calculated quickly
Exclusive SPC chart automatic analysis CPK calculation for continuous test, convenient quick CPK verification of reflux furnace temperature performance
Report printing function, download, analysis data import export function

Specification

Model	i6-06	i6-08	i6-12	i6-20
通道數量	6通道	8通道	12通道	20通道
設備尺寸	160×55×10mm	196×55×10mm	160×55×10mm	230×55×10mm
保溫盒尺寸	255×100×25mm	255×100×25mm	290×170×25mm	290×170×25mm
載具尺寸	280×145×30mm	280×145×30mm	300×205×30mm	300×205×30mm
熱電偶	K型	K型	K型	K型
最大存儲容量	每通道最大500K	每通道最大500K	每通道最大500K	每通道最大500K
採集頻率	0.1~10秒	0.1~10秒	0.1~10秒	0.1~10秒
採樣精度	±0.5℃	±0.5℃	±0.5℃	±0.5℃
數據分辨率	0.1℃	0.1℃	0.1℃	0.1℃
Measurement Range	-150~1050℃	-150~1050℃	-150~1050℃	-150~1050℃
Operating Temperature	0~85℃	0~85℃	0~85℃	0~85℃
Working Votage	DC 5V 1A	DC 5V 1A	DC 5V 1A	DC 5V 1A
Power	內置可充電鋰電池、USB連接電腦直接供電
Language	簡體中文、繁體中文、英文
Operating system	Windows 7以上，雙核心1GHz處理器PC，4G內存，40G硬碟，USB端口
