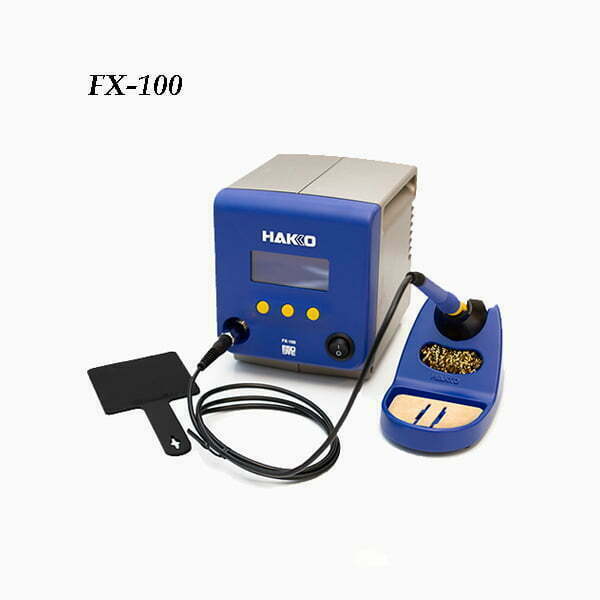

Soldering Iron FX-100

SKU: FX-100 Category: Tags: , , ,
  • Brand：日本HAKKO
  • Digital Soldering Station.
  • Provides the heat to the tip effectively by 'Induction heater'. Efficient heat supply with power assist of unique technology.
  • Suitable for soldering on multi-layer boards with a large grounded pattern inside
  • No temperature setting is required. The advance of 3 applications expands the possibility of HAKKO's IH soldering station and makes a wide range of soldering feasible.
  • By monitoring RF output, the station detects tip temperature drop during the soldering process and then increases the output. This function minimizes tip temperature drop and helps the temperature recover quickly. As a result, it can improve soldering efficiency and quality.

Specification

ModelFX-100
Power SupplyAC 110V 50/60Hz
Power Consumption20~85 W
Temperature Range01系列450℃ / 02系列400℃ / 03系列350℃
Temperature Stability±1℃ at idle temperature
Output Power50W
Output Frequency13.56 Hz
DimensionW127 × D167 × H150 mm
Weight3 kg
Heating ElementIH (High-Frequency Induction Heating)
Tip to Ground Resistance<2Ω
Tip to Ground Potential<2mV
Cord Length1.3 m
