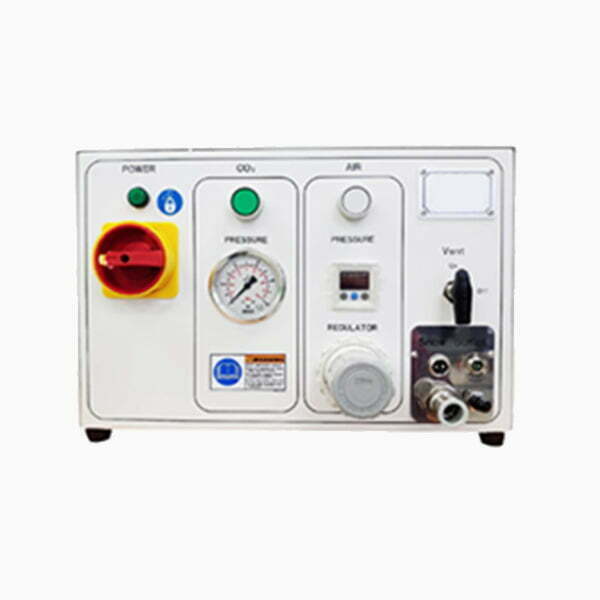

CO2 MicroJet Cleaner FT-JCSM201

SKU: FT-JCSM201 Category: Tags: ,
  • CO2 Cleaning Technology
  • Free from chemicals/water
  • No need for an additional drying process
  • Minimum secondary waste after cleaning

Specification

ModelFT-JCSM201
Cleaner TypeMicro Jet
Application敏感輕微清洗 / 大面積區域清洗
Operation TypeManual Operation
ParametersDry Ice Size / CO2 Consumption / Air Pressure / Working distance / Gun type
Nozzle TypeMicro SoftMicro hard
CO2 Consumption5 g/min15 g/min
CO2 Pressure約60 kg/cm²
CO2 SupplyLiquid CO2 Siphon type Bombe or Bulk Tank, Purity - Above 99.9%
Supply PressureMin. 5 ~ Max. 10 kg/cm² (bar) / Min. 0.5 ~ Max. 1 Mpa
Blasting PressureMin. 2 ~ Max. 10 kg/cm² (bar) / Min. 0.2 ~ Max. 1 Mpa
Consumption0.5~1.5 m³/min. at 5 kg/cm²
DimensionL385 × W280 × H260 mm
Weight約21 kg
Power SupplyAC 220V, 50/60Hz, 單相, 2A

Principle

  • 物理的衝擊(Physical Blasting)Dry ice particles are accelerated by compressed air and collide to the surface
  • 熱衝擊(Thermal shock)Sublimation heat of -78.5℃ shrinks foreign matters and causes cracks
  • 膨脹(Sublimation expansion)Expands volume to 800 times and breaks the boundary
  • 剝離(Ablation)Uses the air pressure of the high-speed compressed air to remove
