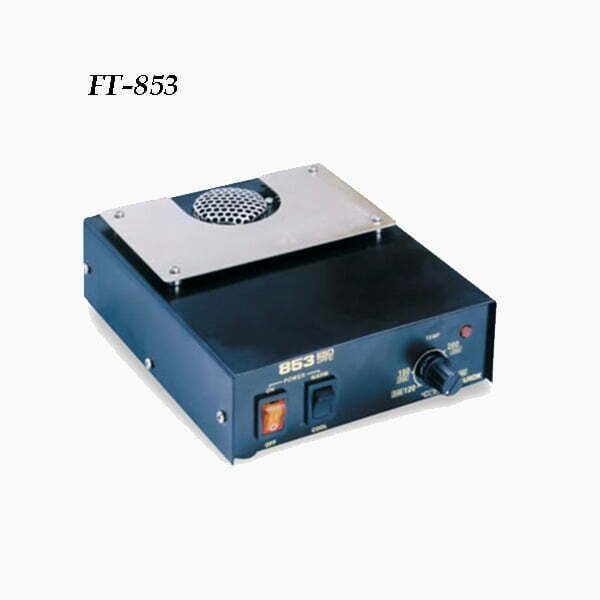

Skip to contentESD Anti-static Hot Air Preheating Station FT-853
- Rapid heating, only 10s to reach 250℃.
- Built-in temperature sensor, stable output temperature.
- Cool or hot air can be selected to preheat or cool chips.
- Can be used with rework stations to process BGA or other flake ICs.
- ESD safe by design.
Specification
| Model | FT-853 |
| Power | 460W |
| Temperature Range | 120~250 ℃ |
| Air Volume | 0.18 m³/min |
| Dimension | L170 × W140 × H60 mm |
| Weight | 約1 kg |
Comparison
| Model | Heating Method | Heating Area | Temperature Range | Power |
| FT-853 | Hot Air | 130×130mm | 120~250℃ | 460W |
| FT-854 | Infrared | 130×130mm | 50~350℃ | 400W |
| FT-870 | Alumimum | 180×200mm | 50~300℃ | 800W |
| FT-PH6700 | Infrared | 633×713mm | 0~200℃ | 2200W |
| TMT-PH600 | Infrared | 310×310mm | 50~400℃ | 2000W |
