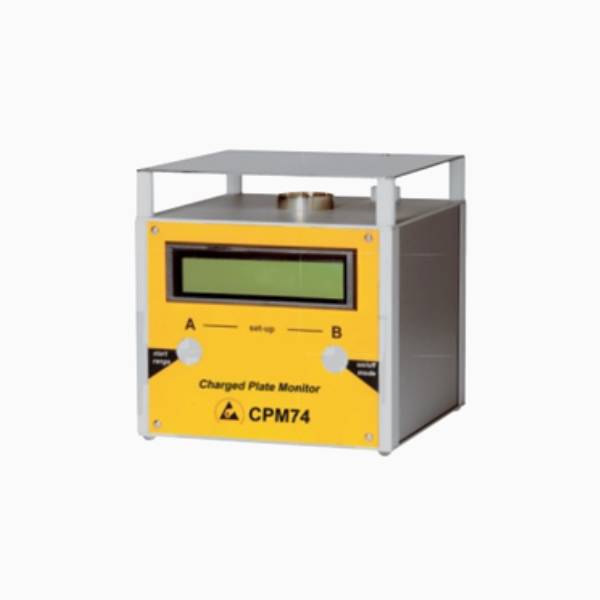

Charge Plate Monitor CPM-74

SKU: CPM74 Category: Tags: ,
  • Brand：Wolfgang Warmbier
  • Measures the air ionizer efficiency and the offset voltage
  • Measures the electrostatic decay time from ± 1000 V to ± 100 V (standard setting)
  • Measures the (150 x 150 mm) plate potential with a built-in electrostatic field meter
  • Plate can be removed in order to apply the high voltage head to the field meter
  • High voltage head allows direct voltage measurement of up to 2 kV
  • Records the measured values in memory
  • Complies with IEC 61340-4-7

Specification

ModelCPM-74
Measurement Range±1000V
Measurement Accuracy±1V
Operating Environment溫度0~40°C，相對濕度10~60%
DisplayAlphanumeric display 100×24mm
Plate150×150mm
Dimension152×152×152mm
Weight1.5kg
Power supplyAC 230V 50Hz / DC 12V 750mA
Battery7.2V 1300mAh, Last approximately 4 hours for continuous operation when battery was fully charged
