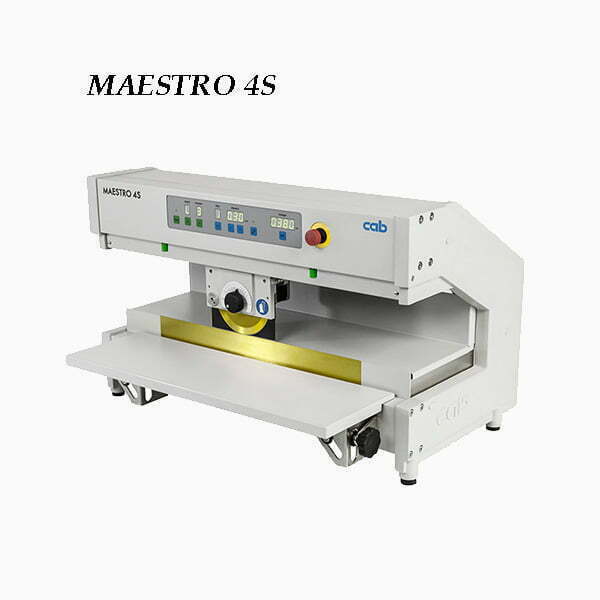

PCB Separator CAB-4S

Brand：德國CAB
The compact MAESTRO 4S separates PCBs quickly and economically.
Blade distance to be entered on the operation panel is set motor-driven.
Up to nine programs to be stored
To separate aluminum with MAESTRO 4S, special adjustment is needed for the standard circular blade.
Separation length to be continuously adjusted via limit switches
In terms of a preventive blade maintenance, the cutting performance is displayed.

Specification

Model	CAB-4S/450
Separation Method	Component side: Circular blade, Solder side: Linear blade
Operational	path-optimized, motor-driven
Separation Speed	300, 500 mm/s, to be switched
Materials	FR4, aluminum
Component height	Component/solder side up to 34 mm
Separation length	450 mm
Support table depth	200 mm
Separation steps	1~5
Blade distance	0.9 mm至0.05 mm
Key switch button	Unlock program selection
Performance display	最長至99KM
DEL	Step reset
Power switch	ON / OFF
Foot switch	START separation
Safety switch	E-stop
Power Supply	100~240V, 50/60Hz
Noize Level	<70dB
Operation Stock Transport	+5~40°C / 10~85% 非凝結狀態 +0~60°C / 20~80% 非凝結狀態 -25~60°C / 20~80% 非凝結狀態
Weight	38 kg
Dimension	H434 × W702 × D425 mm
Approvals	CE, FCC class
