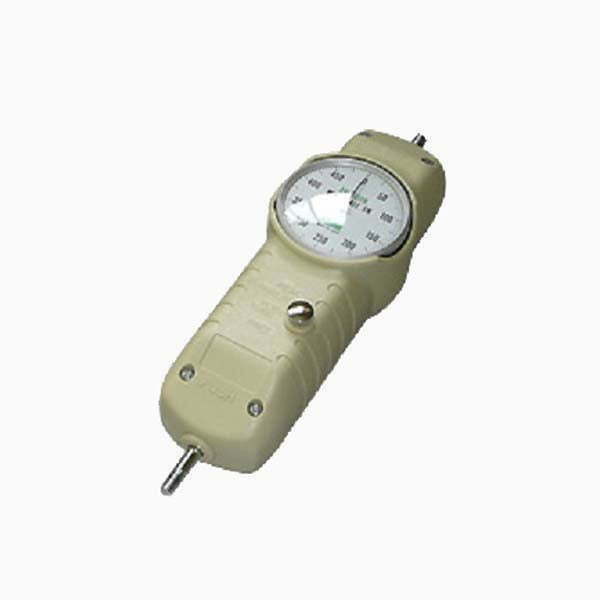

Push-Pull Tester AP-series
- With reinforced plastic body, light, small measuring instrument that can endure long-time measurement.
- For load tests of electronics parts, car parts, polymers, plastics, electric cords, rubber, etc.
- It enables you to do push-pull load mesurement easily in your hand.
- Reset button is put near the tip of the finger for more efficient work, so it is helpful for repeated work.
- 行程為10mm。
- 精度為全量程的±0.2％。
Specification
| Model |
Greates measured value |
Minimum scale value |
| AP-1 |
1 kg / 10N |
10g / 0.1N |
| AP-2 |
2 kg / 20N |
20g / 0.2N |
| AP-3 |
3 kg / 30N |
20g / 0.2N |
| AP-5 |
5 kg / 50N |
50g / 0.5N |
| AP-10 |
10 kg / 100N |
100g / 1N |
| AP-20 |
20 kg / 200N |
200g / 2N |
| AP-30 |
30 kg / 300N |
200g / 2N |
| AP-50 |
50 kg / 500N |
500g / 5N |
