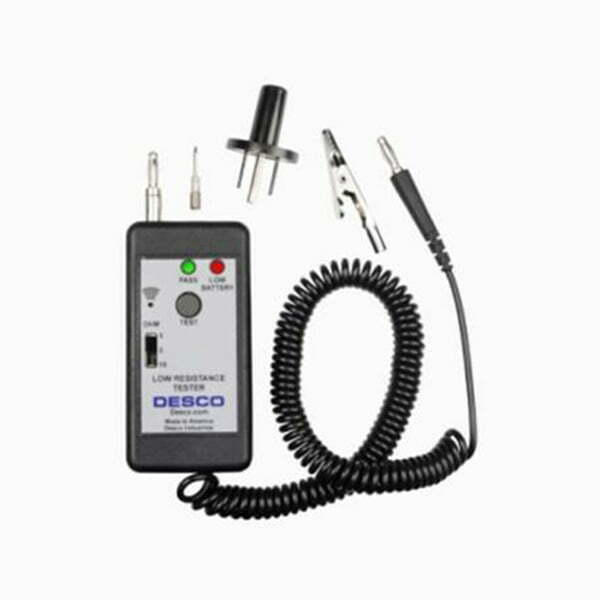

Low Resistance Tester 19249

Brand：DESCO
Compliance verification for grounding systems. Measures the grounding path resistance of banana jacks and other equipment
Pass / Fail selectable test ranges: <1 Ohm, <2 Ohms, and <10 Ohms Designed to test the low resistance grounding limits of ANSI/ESD S20.20, ANSI/ESD S6.1 and recommendations of ESD TR20.20
One button operation with pass indicators confirm that the grounding conductor being tested meets the test range
Constant current ensures testing accuracy at very low resistances compared to the standard multimeter
Small size allows for the Low Resistance Tester to be carried in a shirt pocket
Long battery life, more than 10,000 (2 seconds) tests
Low battery indicator, replaceable 3-volt watch style battery

Specification

Model	19249
Output Voltage	2.5VDC @10mA
Operating Temperature	0° to 40°C
Dimension	4.75″ × 1.75″ × 0.75″ (12 cm × 5 cm × 2 cm)
Accessories	1 Low Resistance Tester, 1 Threaded Banana Plug 1 Threaded Needle Point, 1 Alligator Clip, 1 Banana Jack Outlet Adapter
